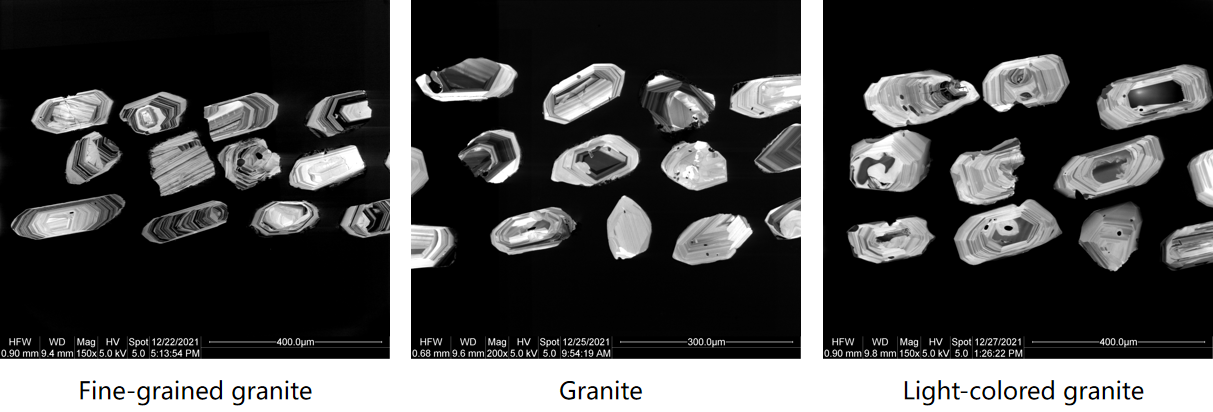

1、CL images of magmatic zircons with different lithologies can assist in dating.

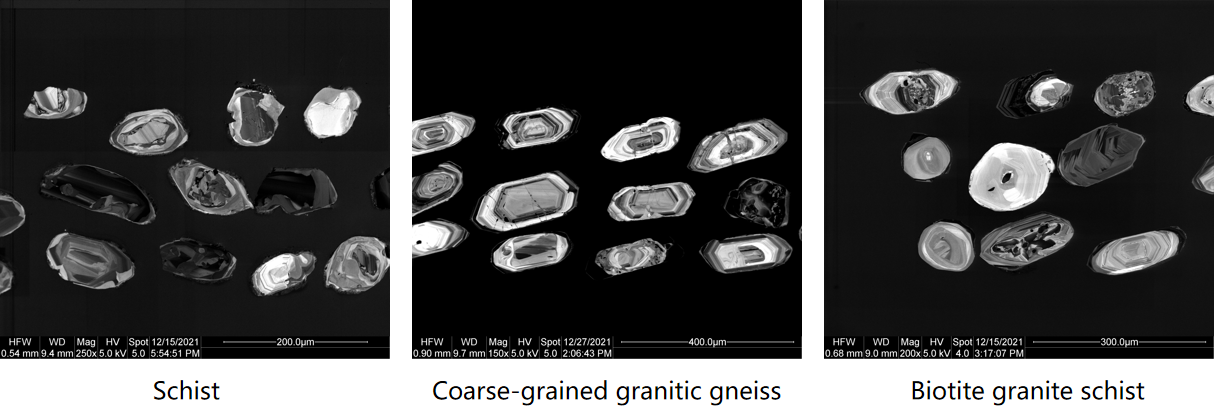

2、CL images of different lithological metamorphic zircons revealing weak zoning.

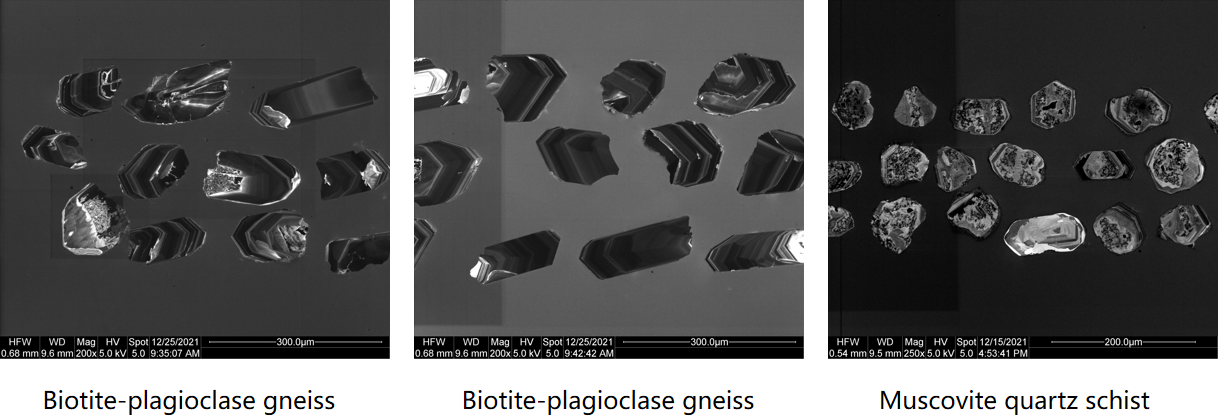

3、CL images of metamorphic zircons with weak luminescence.

4、CL images of baddeleyite and image-stitching

5、Image stitching software

The cathodoluminescence imaging system independently developed by Beijing Goldenscope Technology Co.,Ltd. can achieve automatic and fast stitching of SE and CL images in random order (within 5 seconds) by reading x and y stage information from images. In contrast, the traditional method requires dragging images one by one and stitching them in sequence, which takes several minutes.

6、CL images of scheelite (CaWO₄)

• Scheelite, which has high concentrations of elements such as Y, Sr, Nd, and Pb, is an important ore mineral for studying the fluid evolution in hydrothermal deposits

• CL images of scheelite can clearly reveal characteristics of different generations, indicating a process of dissolution and re-precipitation after the formation of scheelite.

• CL images help in accurately obtaining the elemental content and age information of scheelite from different generations, thereby enabling the reconstruction of fluid evolution history and ore-forming processes.

7、Sunny color imaging
